It’s a question that keeps every project manager and team lead awake at night. You have a BIM model. It looks clean, it’s passed the initial clash detection, and the design intent is clear. But is it truly construction-ready? For the Empower HQ project in Dubai, we found the answer through LOD 400 BIM Modeling. This wasn’t just about adding detail; it was about creating a smart digital model that could handle the pressures of real construction.

Our goal for this prestigious mixed-use development was to deliver more than a model—it was to provide an ultimate guide for fabrication and construction. The journey was filled with design changes, a complete landscape redesign, and incredibly complex facade detailing. Here’s how LOD 400 BIM Modeling turned a good model into an invaluable project asset.

What 'Construction-Ready' Really Means

Many models are “design-ready.” They look great in presentations. But a construction-ready BIM model is a different challenge altogether. It needs to be:

  • Factory-Ready: So detailed that manufacturers can use it directly.
  • Adaptable: Easily handles design changes and revisions.
  • Truly Clash-Free: Every single part fits, down to the nuts and bolts.

For Empower HQ, the test came early. After the model was already in progress, the client decided to add an entire floor to the office tower. This required re-coordinating all vertical MEP risers and structural elements. A model at a lower LOD might have collapsed under this pressure. Our LOD 400 framework, with its precise geometry and data, smoothly handled the change and gave us a clear path forward.

The Real Challenge: When Shop Drawings Meet the Model

Here’s a secret in our industry: the initial design models are the best-case scenario for any construction project. But the truth reveals itself when the contractor’s shop drawings hit our inbox.

We integrated these shop drawings regularly, and they frequently revealed mismatches between the initial design and on-site realities. Our LOD 400 BIM model becomes a real-time project mirror. Instead of seeing these as problems, we integrated them back into the model, ensuring it evolved into a perfect as-built record during construction, not after. This proactive approach saved countless hours of on-site rework.

Why a LOD 350 Facade Model Isn't Enough for Construction

This is where the “construction-ready” question gets its most accurate answer. The facade.

At LOD 350, your facade looks finished. But at LOD 400, it becomes an engineered, installable system. This upgrade is massive. We moved from representing glass and frames to modelling:

  • Every connection bracket and its specific bolt.
  • A re-designed support structure based on wind load calculations.
  • The exact double-glazed units with their thermal and acoustic properties.

Suddenly, a world of new, detailed clashes appeared. A bracket designed by the facade engineer would clash with a structural beam. The tolerance game changed completely—we were now coordinating the facade’s sub-millimeter accuracy with the structural frame’s 10mm tolerance. This level of detail is what turns a model from a suggestion into a step-by-step instruction manual for construction.

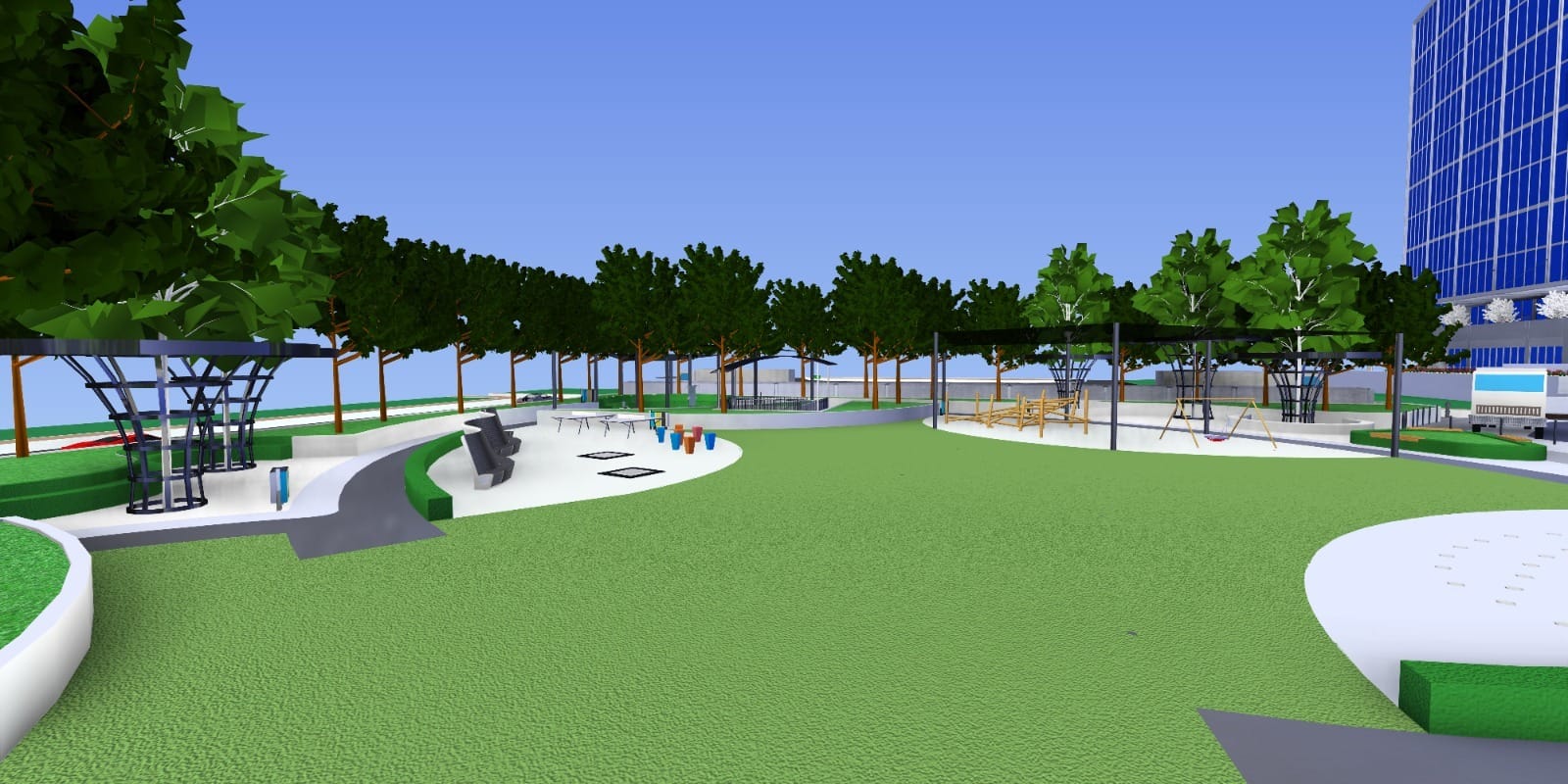

What Happens When the Landscape Design Changes at the Last Minute?

If you’ve been in this business long enough, you know some challenges arrive right at the finish line. For us, it was the landscape.

After we had fully modelled, coordinated, and clash-detected the entire landscape design, a new landscape architect was brought on board with a completely new layout. This meant we had to dismantle and rebuild the entire landscape model from scratch.

A rigid model would have failed. Our LOD 400 BIM processes, built on flexibility and clear data management, allowed us to execute this major change efficiently, ensuring the landscape contractors received an accurate and updated model without impacting the project timeline.

Our Key Takeaways for a Truly Construction-Ready BIM Model
  1. LOD 400 is a Mindset, Not Just a Detail Level. It’s about building the model with the strategic planning so that every element will be used to build, procure, and fabricate.
  2. Treat Shop Drawings as Model Updates. Don’t see them as corrections. Integrating them is the most valuable service you can provide during construction.
  3. The Facade Demands Early Attention. The shift to LOD 400 for the facade is the single biggest coordination effort. Start early and involve all stakeholders.
  4. Your Model Must Be a Living Document. If your BIM model is static, it’s already obsolete. Build it to handle the unexpected changes of a real-world project.
LOD 400 BIM Modeling

So, Was It Truly Construction-Ready?

Absolutely. By committing to LOD 400 BIM Modeling, we delivered more than just a model. We delivered an adaptable, data-rich, and dynamic digital asset that:

  • Prevented rework by identifying clashes at the bolt-and-bracket level.
  • Absorbed major design changes without missing a beat.
  • It provided clarity to the entire project team, from the client to the installers.

The absence of problems doesn’t define a construction-ready model, but by its ability to solve them efficiently before they ever reach the site.
